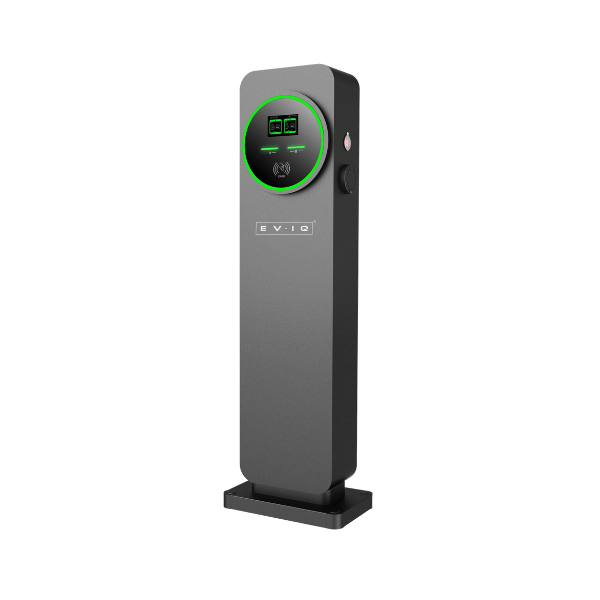

22kW AC Dual Gun Freestanding EV Charger

Description

High-Powered Dual Charging Capability

With a maximum output of 2 x 22kW, this freestanding EV charger allows two vehicles to charge at once, making it ideal for high-traffic locations. Each connector provides up to 32A three-phase power, ensuring fast and consistent charging performance across both outlets.

Smart Connectivity & OCPP Integration

Designed for modern EV infrastructure, the charger supports Ethernet, Wi-Fi, and Bluetooth connectivity, with optional 4G capability for remote access and monitoring. Full compatibility with OCPP 1.6 enables seamless integration with back-office systems, making it perfect for scalable charging networks.

Flexible Installation & Design

The floor-mounted freestanding design makes installation simple and adaptable across a range of environments, from car parks to commercial premises. Its compact yet sturdy construction ensures long-term performance without occupying excessive space.

Additional information

Input Current

63A Three-phase

Input Voltage

400V AC

Input Frequency

50/60 Hz

Output Voltage

400V AC

Max Output Current

2 x 32A Three-phase

Charging Interface

IEC 62196-2, Type 2

Connection

Tethered

Ethernet/Wi-Fi/Bluetooth

Yes

4G

Optional

OCPP

OCPP 1.6

LED Indicator Light

Yes

Touch Screen

Yes

IP Rating

IP55

Impact Resistance

IK10

Operating Temperature

-30°C ~+50°C

Dimensions (w/h/d)

550 x 1510 x 300mm

Installation

Floor Mounted
